Бесщеточный двигатель серии 63RBL

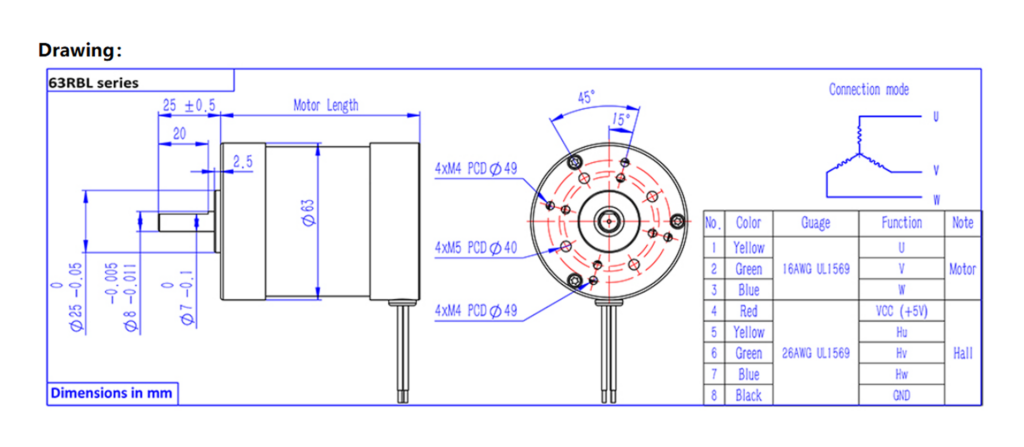

Общая спецификация
| Item |
Specification |
| Winding Type |
Star |
| Hall Effect Angle |
120° （electrical angle) |
| Shaft Run Out |
0.025mm |
| Radial Play |
0.025mm@450g |
| End Play |
0.025mm@450g |
| Max. Radial Force |
115N@10mm from the flange |
| Max. Axial Force |
45N |
| Insulation Class |
Class B |
| Dielectric Strength |
500VDC for one minute |
| Insulation Resistance |
100MΩ Min.500VDC |
Кастомизация:
Индивидуальные настройки напряжения, обмотки, вала, монтажа и выводов
Опции для термозащиты, степень защиты IP, высокотемпературная изоляция
Спецификация техники
| Model | 63RBL-50 | 63RBL-60 | 63RBL-70 | 63RBL-80 | 63RBL-90 | 63RBL-100 | 63RBL-110 | |
| Number of phase |
3 |
|||||||
| Number of pole |
4 （Option 8） |
|||||||
| Voltage | Vdc |
24v (Option for 12v up to 230vdc) |
||||||
| No load speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Rated torque | Nm | 0.2 | 0.31 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
| Rated Speed | rpm | 3050 | 3050 | 3050 | 3000 | 3000 | 3000 | 3000 |
| Rated Current | A | 3.5 | 5.5 | 7.0 | 8.5 | 10.5 | 12 | 14 |
| Rated Power | W | 64 | 100 | 128 | 157 | 188 | 219 | 251 |
| Weight | kg | 0.80 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 |
| Length | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
