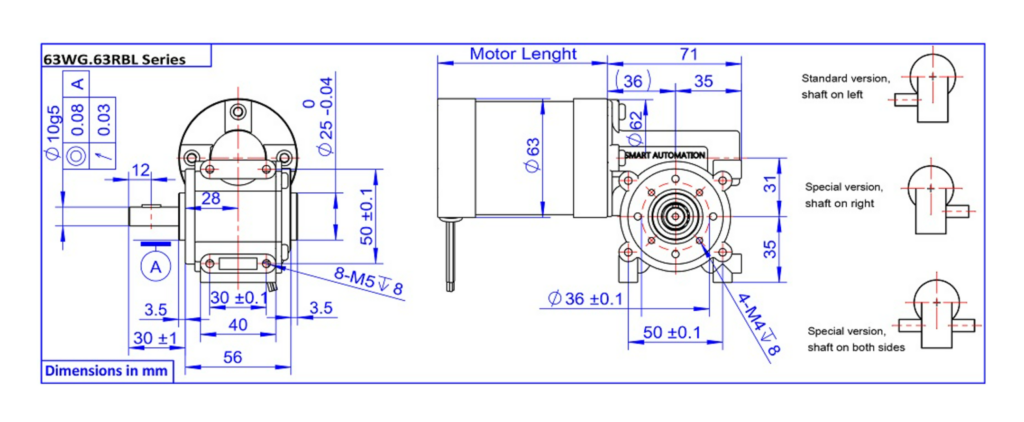

Червячный редуктор серии 63WG.63RBL
Электрическое соединение：
| Lead No. | Lead Color | Lead Gauge |
Function |
DESCRIPTION |
| 1 | Red | UL1007/26AWG |
VCC |
SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black |
GND |
GROUND FOR HALL SENSORS |
|
| 3 | Yellow |
HALL A |
||
| 4 | Green |
HALL B |
||
| 5 | Blue |
HALL C |
||
| 6 | Yellow | UL1007/14AWG |
PHASE U |
|
| 7 | Green |
PHASE V |
||
| 8 | Blue |
PHASE W |
Технические характеристики:
| Model | 63RBL-50 | 63RBL-60 | 63RBL-70 | 63RBL-80 | 63RBL-90 | 63RBL-100 | 63RBL-110 | |
| Number of phase |
3 |
|||||||
| Number of pole |
4 （Option 8） |
|||||||
| Voltage | V |
24v (Option for 12v up to 230vdc) |
||||||
| No load speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| No load current | A | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.1 |
| Rated torque | Nm | 0.2 | 0.31 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
| Rated Speed | rpm | 3050 | 3050 | 3050 | 3000 | 3000 | 3000 | 3000 |
| Rated Current | A | 3.5 | 5.5 | 7.0 | 8.5 | 10.5 | 12 | 14 |
| Rated Power | W | 64 | 100 | 128 | 157 | 188 | 219 | 251 |
| Weight | Kg | 0.80 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 |
| Length | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
Спецификация червячной передачи серии 63WG:
| Reduction ratio | 10 | 15 | 30 | |
| Efficiency | 0.65 | 0.55 | 0.45 | |
| Continuous torque | Ncm | Up to 1000（metallic gears）
Up to 400（non-metallic gears） |
||
| Weight of gearbox | kg | 0.4 | ||
| Axial load/radial load | N | 300/350 | ||
Основные характеристики двигателя:
Подшипник: высококачественный шарикоподшипник
Класс защиты: IP54
Класс изоляции: F / Рабочая температура: от -40°C до +140°C
