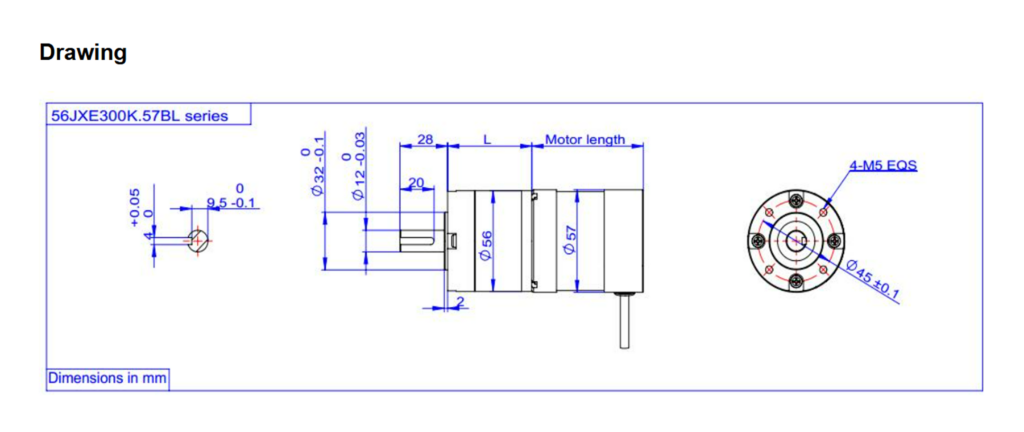

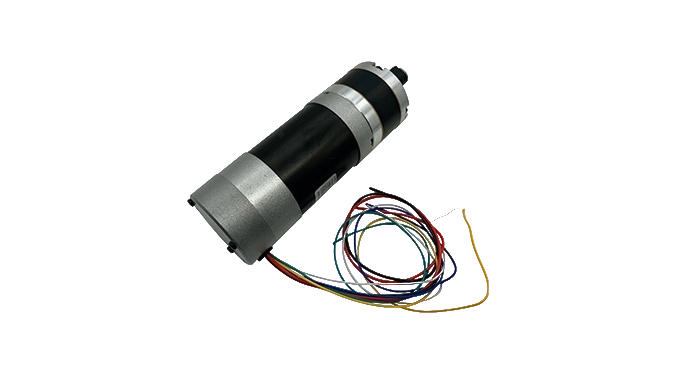

Планетарный редуктор серии 56JXE300K.57BL
Спецификация техники 57BL
| Model | 57BL005A | 57BL01A | 57BL02A | 57BL03A | 57BL04A | |
| Number of phase |
3 |
|||||
| Number of pole |
4 (Option for 8) |
|||||
| Voltage | V |
36v (Option for 12v 24v up to 115vdc) |
||||
| No load speed | rpm | 5200 | 5200 | 5200 | 5300 | 5400 |
| Rated torque | Nm | 0.055 | 0.11 | 0.22 | 0.32 | 0.42 |
| Rated Speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 |
| Rated Current | A | 1 | 1.8 | 3.2 | 4.7 | 6.5 |
| Rated Power | W | 23.04 | 46.07 | 92.15 | 134.03 | 175.92 |
| Weight | Kg | 0.28 | 0.5 | 0.75 | 1 | 1.25 |
| Length | mm | 45 | 55 | 75 | 95 | 115 |
Характеристики планетарной коробки передач
Модель коробки передач: 56JXE300K
| Ring material |
E : Metal |
| Bearing at output |
Ball bearings |
| Max. Radial load(10mm from flange) |
≤250N |
| Max. shaft axial load |
≤100N |
| Radial play of shaft (near to flange) |
≤0.08mm |
| Axial play of shaft |
≤0.4mm |
| Backlash at no-load) |
≤2.5° |
| Shaft press fit force max |
≤300N |
| Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency |
L(mm) |
Weight(g) |
| 1/3.6 1/4.3 | 3.0N.m | 9.0N.m | 90% |
37.8 |
489 |
| 1/13 1/15 1/18 1/23 | 12.0N.m | 36N.m | 81% |
49.5 |
681 |
| 1/47 1/55 1/65 1/77 1/96 1/121 | 24.0N.m | 72N.m | 73% |
60.8 |
871 |
| 1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 | 30N.m | 90N.m | 66% |
71.9 |
1066 |
