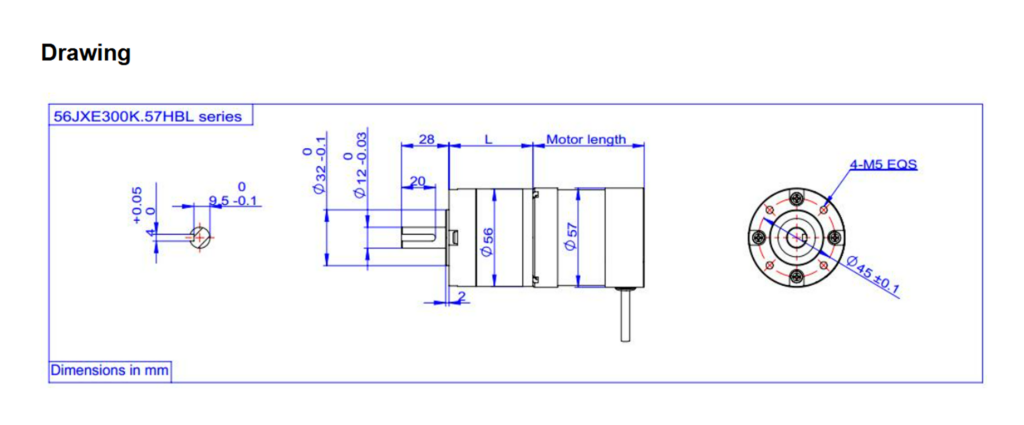

Планетарный редуктор серии 56JXE300K.57HBL
Спецификация техники 57HBL
| Model | 57HBL01A |
57HBL02A |
57HBL03A |
57HBL04A |
|
| Number of phase |
3 |
||||
| Number of pole |
4 (Option for 8) |
||||
| Voltage | V |
36v (Option for 12v 24v up to 115vdc) |
|||
| No load speed | rpm | 5200 |
5200 |
5300 |
5400 |
| Rated torque | Nm | 0.14 |
0.28 |
0.43 |
0.49 |
| Rated Speed | rpm | 4000 |
4000 |
4000 |
4000 |
| Rated Current | A | 2.2 |
4.5 |
6.8 |
7.9 |
| Rated Power | W | 58.64 |
117.28 |
180.10 |
205.24 |
| Weight | Kg | 0.5 |
0.8 |
1.1 |
1.5 |
| Length | mm | 55 |
75 |
95 |
115 |
Характеристики планетарной коробки передач
Модель коробки передач: 56(60)JXE300K
| Ring material |
E Metal |
| Bearing at output |
Ball bearings |
| Max. Radial load(10mm from flange) |
≤250N |
| Max. shaft axial load |
≤100N |
| Radial play of shaft (near to flange) |
≤0.08mm |
| Axial play of shaft |
≤0.4mm |
| Backlash at no-load) |
≤2.5° |
| Shaft press fit force max |
≤300N |
| Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency |
L(mm) |
Weight(g) |
| 1/3.6 1/4.3 | 3.0N.m | 9.0N.m | 90% |
37.8 |
489 |
| 1/13 1/15 1/18 1/23 | 12.0N.m | 36N.m | 81% |
49.5 |
681 |
| 1/47 1/55 1/65 1/77 1/96 1/121 | 24.0N.m | 72N.m | 73% |
60.8 |
871 |
| 1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 | 30N.m | 90N.m | 66% |
71.9 |
1066 |
